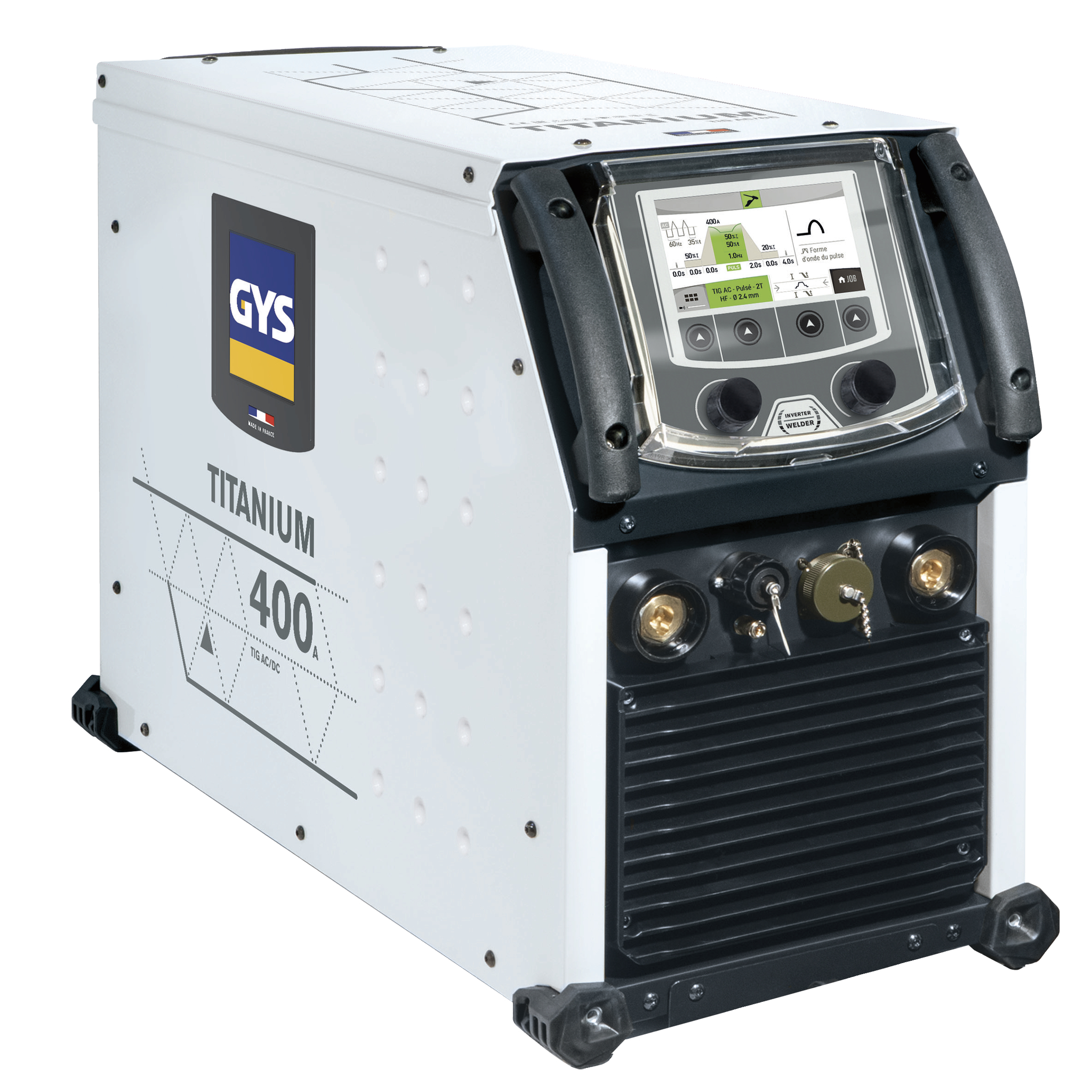

GYS Tig Titanium 400AC/DC TRI

The TITANIUM 400 ACDC is a highperformance TIG ACDC generator 400 A to 60 designed to offer a wide choice of welding processes TIG AC DC MMA It can be used to weld all types of materials mild steel stainless steel aluminium copper titanium Also ideal for welding thin gauge its Pulse mode reduces heat input and provides better arc control Intuitive and highly functional its digital interface allows you to change welding parameters with ease6 TIG WELDING MODESDC Standard smooth welding on the majority of ferrous materialsDC Pulse allows welding while minimizing heat input up to 25 kHzFastPulse pulses up to 20 kHz for specialised steel applicationsAC Standard welding of aluminium and its alloys Al AlSi AlMg AlMn etcAC Pulse precise penetration regulation controllable by adjusting the AC pulse frequency up to 500 HzAC Mix alternates between AC and DC currents to increase welding speed TIG WIZARD SOLUTIONPatented synergic mode for maximum productivity with welding and tacking of Aluminum Steel Stainless Steel and Copper parts with or without the need for filler material5 types of assembly End to end BW Lap FW Interior angle BP Exterior angle and wire fusionWizard Lab for the creation of bespoke welding cycles OPTIMIZED SETTINGS4 spot modes Spot Multi Spot traditional spotting before welding thin sheets Tack Multi Tack ultraprecise pointing without oxidation reducing the risk of workpiece deformation3 types of arc ignition Standard Lift HighFrequency HF and TouchHF timed highfrequency ignition3 triggering options 2T 4T and 4T LOGConfiguration of AC waveforms enabling closer arc control and penetrationETIG mode guarantees the machine to respect the selected welding parameters regardless of the position of the torch in relation to the workpiece welding energy control MAXIMUM CONNECTIVITY Accurately measures energy usage Traceability of all welding seams conforming to EN 3834 standard Welding accessory calibration mode improves the calculation of energy usage Connectable for use with Robots via an optional kit 037960 User mode allows the option to share the product with several different operators Free tool for interface customization is available online Backup of user Jobs via USB key 500 max as well as machine configuration Compatible with latch double button potentiometer and pushpull torches New and revised welding synergies and software updates available by USB key Remote control pedal or remote option connectable without tools Liquid cooling unit optional 013537 MMA MMA AC and Pulsed MMA modes electrodes up to Ø 8 mm
