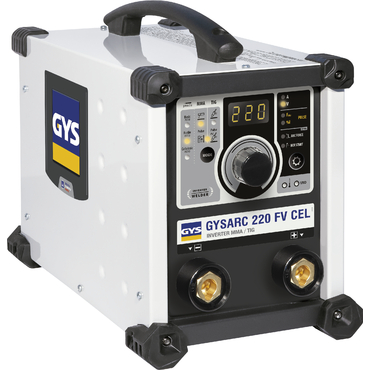

GYSARC 220 FV CEL – MMA Inverter 10 to 220A

With inverter technology the GYSARC 220 FV CEL is a singlephase 220 A MMA power source that meets the professionals requirements Designed around reinforced electronics this workstation can easily weld cellulosic rutile or basic electrodes It is also equipped with the TIG lift DC process which ensures high quality weld beads even on thin sheets Robust and versatile the GYSARC 220 FV CEL offers the user great welding comfort and maximum productivityMMA process Welding current in MMA from 10 to 220 A Duty cycle of 60 at 130 A 40C MMA Pulse ideal for upward vertical welding position Accepts Rutile Basic Stainless steel Cast iron electrodes and Cellulose up to Ø 5 mm Integrated welding aids adjustable Hot Start adjustable Arc Force and Antisticking Choice of electrode type for optimum welding predefined parametersDC TIG process DC TIG welding current from 5 to 220 A Lift ignition TIG Pulse limits the melting temperature and allows the welding of sheets from 03 mm PFC technology allows the use of power cables up to 100 m Flexible Voltage singlephase power supply from 85 to 265 V IP23 protection level for outdoor use Protected against overvoltages up to 400 V thanks to PROTEC 400 technology
